- High solar cell efficiency: Polycrystalline 17.9%, The included MPPT charge controller has a peak efficiency of 97%
- IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets
- RJ45 interface to use with the MT-5 meter, convenient to check operating parameters of charge controller
- The Renogy 40A MPPT is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
- With a Renogy 40A MPPT Charge Controller, you can expand your system up to a maximum of 400W (12 Volt) or 800W (24 Volt)

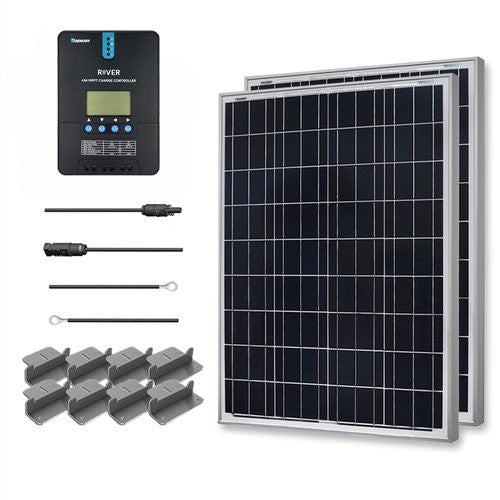

Details: Description No matter how long your journey is, with the Renogy 200 Watt Starter MPPT Kit you can be confident you are getting the most out of your system. Designed to draw out your system's potential, this kit includes our Rover 40A MPPT charge controller which uses Maximum Power Point Tracking technology, transferring power up to 30% more efficiently than PWM charge controllers. The included 40A MPPT charge controller leaves room to expand your system in the future. The Renogy Starter MPPT Kit provides your journey with the efficiency that lasts. Specifications Renogy 100W Polycrystalline Solar Panel Maximum Power: 100W Optimum Operating Voltage (Vmp): 17.8V Optimum Operating Current (Imp): 5.62A Rover 40A MPPT Solar Charge Controller (Negative Grounded) Rated Charge Current: 40A Rated Load Current:20A Max. PV Input Short Current:50A Max. Battery Voltage :32V Max Solar Input Voltage :100VDC Renogy 20Ft 10AWG MC4 Adaptor Kit Rating Voltage: 600/1000V Renogy 8ft 8AWG Tray Cables Rating Voltage: 600/1000V Mounting Z Brackets Four Z Shape Solar Panel Brackets Eight Long Cap Bolts and Four Short Bolts Four Spring Washers and Four Washers Four Nuts Warranty Information panel: 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty Accessories: 1-year warranty on rest of the kit components Orders over $200 may require a signature. We sell entire home/business solar system both on the grid and off a grid, including racking, inverters, and other system components. Please call us 909-517-3598 and extension sales.
