Brand: HQST
Features:
- Anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance, Withstand high winds (2400 Pa) and snow loads (5400 Pa). IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets.
- Pre-drilled holes on the back of the panel allow for fast mounting and securing. Compatible with different mounting systems such as Z-brackets, Pole Mounts, and Tilt Mounts.
- High module conversion efficiency. Ideal output: 500Wh per day (depending on the availability of sunlight). Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
- Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- 5 years material and workmanship warranty and 25 years power output warranty.

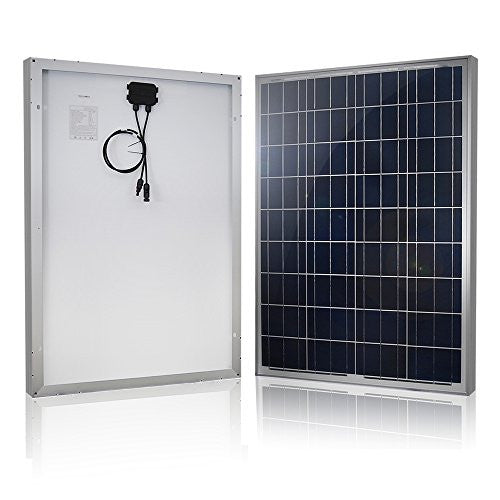

Details: The HQST 100 Watt 12 Volt Polycrystalline Solar Panel is a key component in establishing an off-grid solar energy system. Weighing in at only 16.5lbs, this panel contains 36 efficient polycrystalline solar cells protected by a thin layer of tempered glass. The panel is designed to withstand heavy snow and wind loads. The back of the panel features a waterproof junction box and MC4 leads for easy plug and play use! Use this panel alone or add additional panels to create a custom solar energy system.
Specifications
Maximum Power: 100Watt
Maximum System Voltage: 600V DC (UL)
Optimum Operating Voltage (Vmp): 17.8V
Optimum Operating Current (Imp): 5.62Amp
Open-Circuit Voltage (Voc): 22.4Volt
Short-Circuit Current (Isc): 5.92Amp
Dimensions: 39.7 X 26.7 X 1.4 In
Weight: 16.5lbs
Warranty
5-year warranty.
